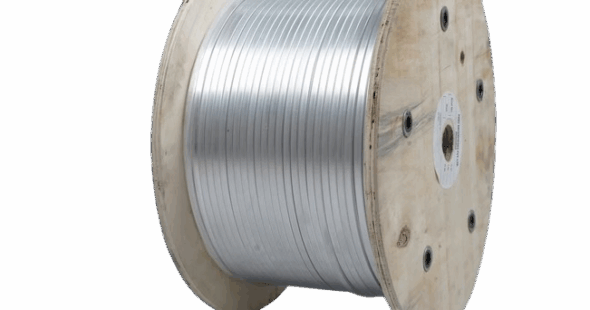

PAPER INSULATED ALUMINIUM CONDUCTOR

PAPER INSULATED ALUMINIUM CONDUCTOR

Paper-insulated aluminium conductors are electrical wires covered with special types of treated paper, such as Mica Tape, Kraft Paper, or Nomex™ Paper. This insulation is commonly used in high-voltage electrical systems, including oil-filled power transformers, dry-type transformers, high-tension motors, and windmill generators.

The treated paper is soaked with insulating oils or resins to enhance its electrical and heat resistance. This insulation offers strong protection against electrical breakdown and is more eco-friendly because it is biodegradable.

RECTANGULAR SPECIFICATION

SIZE RANGE MIN. MAX.
Width 4 mm 25 mm
Thickness 0.80 mm 6.00 mm
Cross Section Area 3.2 SQmm 150 SQmm

INSULATION RANGE

MIN. MAX.
INSULATION 0.30 mm 6.00 mm

WRAPPING METHOD

  • Butt Wound Wrapping
  • Conventional Overlapped Wrapping
  • Multiple Layers(Upto 32 Layers on a Single Line)
  • Interlocked Wrapping
  • Combinations

INSULATION TYPE

  • Electrical Grade Kraft Paper
  • Crepe Paper
  • Nomex™ Paper
  • Mica Paper
  • Thermally Upgraded Paper
  • Polyester Film
